Grandstream Gateway With Asterisk+Asterisk-GUI

Here I’m using Grnadstream FXO Gateway GXW4104 Login to GXW4104 Select Profile 1 SIP Server: IP address of Asterisk box SIP Registration: No

Select FXO Lines 4. Unconditional Call Forward to VOIP: ch1-4:604;

Here 604 is the extension which the incoming call to be routed in asterisk.

In Asterisk , edit the following files.

users.conf

[gxw4104]
trunkname = Grandstream
trunkstyle = voip
type = peer
context = DLPN_incoming
host = IP address of Grnadstream Gateway
hasexten = no
hassip = yes
insecure = port
canreinvite = no
allow = all

extensions.conf

[CallingRule_Call_out]
exten = _X.,1,Macro(trunkdial-failover-0.3,SIP/gxw4104/${EXTEN})

[DLPN_ePillars]
include = CallingRule_Call_out

[DLPN_incoming]
exten = 604,1,Dial(SIP/604)`

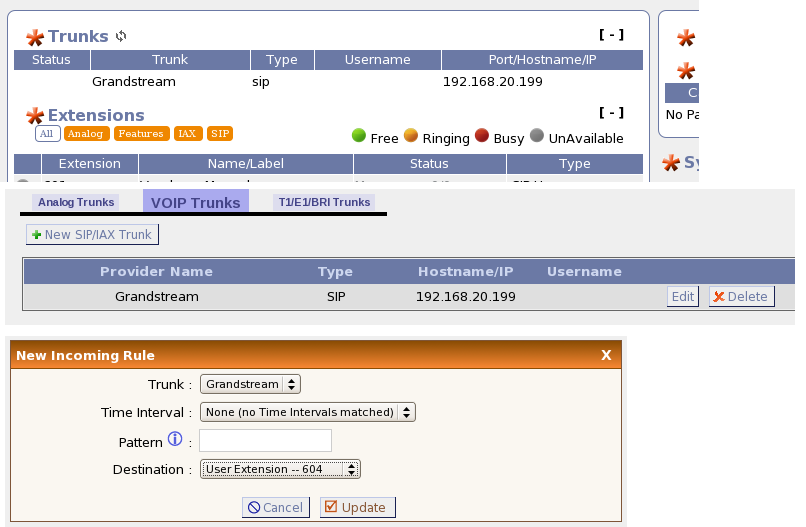

It will be available in Asterisk-GUI after reloading asterisk.
